IGBT Invertor Technology with SMT in PCB Design
Arc Force Adjustment on Front Panel
Digital Meter for Accurate Parameter Selection/Reading
Smooth & Stable ARC with minimum Spatter
Suitable for All Electrodes Including 6010, 7010 & 8010
Remote Current Control (Optional)
Construction Site
Pressure Vessel Mfg.
Fabrication

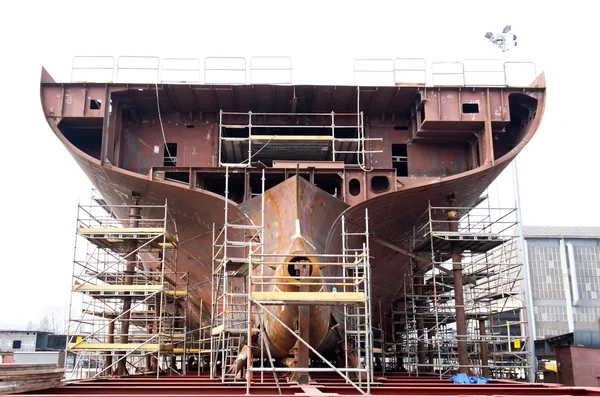

Shipbuilding
SMAW (Stick)
GTAW (TIG without HF)
|
MODEL ARC 400 HDC |
|
|
Technical Parameter |
Value |
|
Input Supply |
400Vac +/- 15% 3 Phase, 50/60Hz |
|
Input Power |
20.5 kVA |
|
Output Current Range |
20 – 500 A |
|
Duty Cycle % |
100 % |
|
Open Circuit Voltage |
75 Vdc |
|
Dimensions (LxWxH) |
576x297x557 mm |
|
Weight |
40 Kg |
